badassBox for Specialized motors


Specialized motors use very specific speed sensors, whose shape and positioning decide on the badassBox to be used.

Where is your sensor?

The speed sensor and its positioning are decisive for which badass box you need.

We distinguish between the classic mounting on the chain stay and the integrated mounting in the area of the dropout.

Sensor on the chain stay

A good indication that your sensor is on the chain stay is the presence of a spoke magnet.
In addition, the sensor is usually direct and easily visible.

Specialized Sensor

If this sensor of your Specialized motor - as shown in the picture below - is integrated into your bike, then the badassBox4 Brose is exactly what you need.

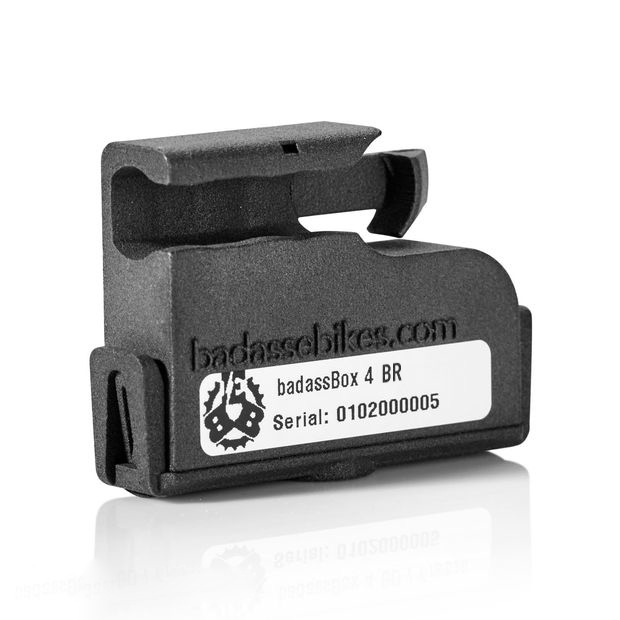

badassBox 4 Brose
Attention, the pin-shaped sensor (second picture) is not compatible with this variant –for the CS-Sensor you need the badassBox 4 Brose CS-Set Badass eBikes proudly presents: the new improved badassBox 4 Brose The badassBox 4 is the result of more than a year's development. We have completely re-designed the casing, made it more streamline and replaced the o-ring of the previous version with our patented snap-lock fastening. Making it more streamline makes it even easier to fit. The new snap-lock fastening means you can attach and remove your badassBox with just one hand in seconds. At customer's request, we have additionally added an optional securing feature on the snap lock using a cable tie. The CR2 battery has been replaced with a AAA battery, so you can pick up replacement batteries much cheaper on just about any street corner. Tool-free battery change can be carried out quickly and easily while you're on the road. We recommend replacing the battery at least once a year at the start of the season. Due to our specially patented field enhancement technology FEET (Field Enhancement & Elimination Technology) you get very far with one battery. To protect against moisture and mechanical stress, the electronics are glued into the casing and completely sealed with a special casting compound. The badassBox is developed and manufactured exclusively by us in-house. Before and after casting we check each badassBox individually. Customer satisfaction and quality are our top priorities. If you have any questions, don't hesitate to ask – we'll get back to you with an answer straightaway, mostly on the same working day. Due to the high quality and our focus on customer satisfaction, we additionally offer a 1 month money-back guarantee. In a nutshell The badassBox is attached to the speed sensor of the e-bike and overrides the 25 km/h speed limit. Remove it and your e-bike is restored to its original state. Contactless e-bike tuning Streamlined, registered design for casing Patented snap-lock fastening Securing feature on the housing Patented field enhancement technologyAuto industry potting compound Doubled quality control Made in Germany One month money-back guarantee Installation The badassBox 4 Brose is fitted over the Brose speed sensor next to the rear wheel. When the snap-lock clicks into position, the badassBox is fitted securely to the sensor.­ For extra secure fitting, the badassBox can also be fastened with a zip tie. Once the badassBox has been fitted onto the sensor, the spoke magnet must be offset to the casing edge in the direction of the snap-lock clasp. It's now ready for use. Following removal of the badassBox, the spoke magnet must be returned to its original position. .responsive-video { position: relative; padding-bottom: 56.25%; padding-top: 30px; height: 0; overflow: hidden; } .responsive-video iframe { position: absolute; top: 0; left: 0; width: 100%; height: 100%; } How it works The contactless and wireless badassBox transmits a modified signal in order to override the speed limit of your e-bike – without interfering with the motor's electronic circuitry or software. There's no need to open the motor and there is no risk of damaging it. The badassBox can be fitted in seconds – and just as quickly removed, restoring your e-bike to its former road-legal condition. For all these advantages, a wrong speed, and values derived from it, are displayed. We recommend the use of GPS-related accessories for a more precise data acquisition of driving data (smartphone, bike computer, etc.). Technical data Dimensions   61 x 43 x 15 mm Weight badassBox 27 g including battery 37 g Battery 1.5 V AAA battery (IEC R03)

€154.00*

Integrated sensor

If the sensor is integrated, then you do not have a spoke magnet, but instead a magnet on the brake disc.
To get a good view of the sensor, it is recommended to remove the rear wheel.

Specialized Sensor

If this sensor of your Specialized motor - as shown in the picture below - is integrated into your bike, then the badassBox4 Specialized-Set is exactly what you need.

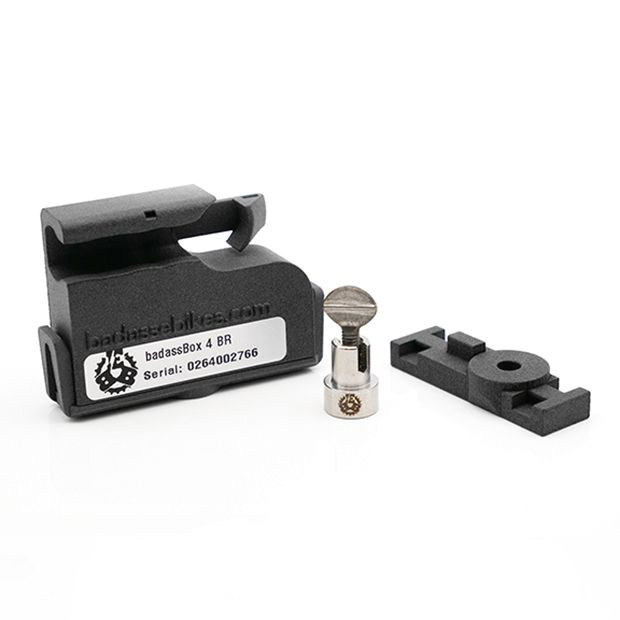

badassBox 4 Specialized-Set
Attention, only the normal sensor (first picture) is compatible with this variant - for the pin-shaped sensor you need the badassBox 4 Specialized-Set Turbo Levo 2019 The badassBox 4 Specialized set includes all the parts you need to mount the badassBox 4 Brose on your Specialized e-bike: badassBox 4 Brose Universal Mount Spoke Magnet with Thumb Screw With the badassBox 4 Specialized set you not only get all the necessary parts to tune your e-bike in one 'click', but you also save money. Installation The integrated sensor is located in the area of the dropout. To get to the sensor you have to dismount the rear wheel. Find the position of the integrated sensor* in the dropout of your e-bike. *The sensor shape shown is an example. Undo the screws of the bracket that holds the sensor* is fastened to the dropout. *The sensor shape shown is an example. Fasten the Universal Adapter with cylinder head screw, washer and nut (included in delivery) to the sensor*. *The sensor shape shown is an example. Now you can attach the Universal Adapter with mounted sensor* on the chainstay with supplied cable ties. *The sensor shape shown is an example. Slide the badassBox onto the adapter until it clicks into place. Reinstall the rear wheel. Mount the spoke magnet and align it with the edge of the badassBox housing. That's it. Have fun with your faster e-bike!

€159.00*

Specialized Turbo Levo Sensor

If this sensor of your Specialized motor - as shown in the picture below - is integrated in your bike, then the badassBox4 Specialized-Set Turbo Levo 2019  is exactly what you need.

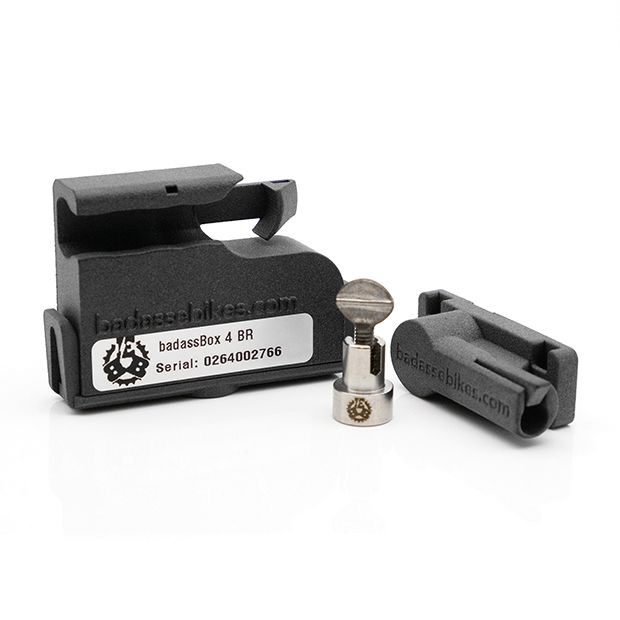

badassBox 4 Specialized-Set Turbo Levo 2019
Attention, only the pin-shaped sensor (first picture) is compatible with this variant - for the normal sensor you need the badassBox 4 Specialized set The badassBox 4 Specialized set Turbo Levo 2019 includes all the parts you need to mount the badassBox 4 Brose on your Specialized e-bike with pin-shaped sensor: badassBox 4 Brose Turbo Levo 2019 Adapter Spoke Magnet with Thumb Screw With the badassBox 4 Specialized set you not only get all the necessary parts to tune your e-bike in one 'click', but you also save money. Installation The integrated sensor is located in the area of the dropout. To get to the sensor you have to remove the rear wheel. Unscrew the screws of the bracket that secures the sensor to the dropout. Slide the pin-shaped sensor into the adapter so that only the cable extends out and the snap closes flush with the surface of the adapter. (In the photo on the right, the sensor is not yet fully inserted).

€164.00*
